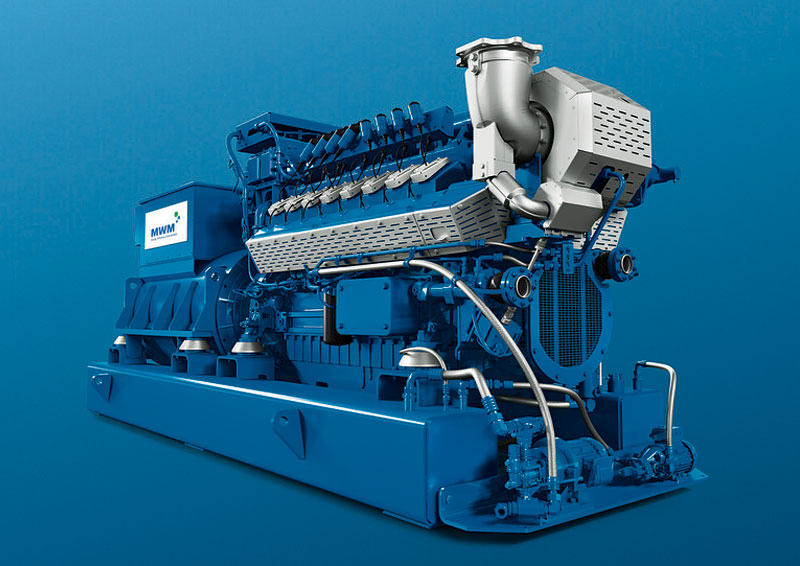

MWM TCG 3016 V16 S Gas Engine
High Efficiency and Performance, Small Footprint
Compact Performance for High Demands
The MWM TCG 3016 V16 S was developed especially for use with natural gas in 50 Hz networks. The unit delivers an electrical output of 1,000 kW and a thermal output of 1,100 kW. This makes the engine highly suitable for applications with high loads and continuous operation. Thanks to its compact design and high power density, energy production can be realized efficiently in a limited space.
High Efficiency Due to Low Operating Costs
The gas engine not only impresses with its technical performance, but also with an excellent ROI. The low investment and service costs enable fast refinancing of the entire plant. Electrical efficiency levels of up to 41.5% enable more efficient use of energy. The vibration-decoupled base frame further reduces installation costs and ensures stable operation under continuous load.
Easy Maintenance Thanks to Optimized Oil Management
Another feature of the TCG 3016 V16 S is its extremely low lubricating oil consumption of just 0.1 g/kWh. In combination with the large integrated oil volume and extended oil change intervals, this significantly reduces maintenance costs. The integrated oil and refill tanks facilitate handling, further reducing operating costs. In addition, the system can be intuitively monitored and controlled locally or remotely via the TPEM (Total Plant & Energy Management) control.
Smart and Efficient: The TCG 3016 at a Glance
The product video introduces the MWM TCG 3016 series. It shows how robust technology, modern components, and the digital control system TPEM join forces to ensure high efficiency and reliability. The series features smart oil management, optimized turbocharging, and a durable design. Therefore, it is ideal for industrial applications, municipal utilities, and distributed energy supply.
MWM TCG 3016 V16 S Gas Engine—Benefits at a Glance
Maximum Output, Compact Design
- Electrical output of 1,000 kW, thermal output of 1,100 kW
- Best-in-class power density
- Optimized for natural gas operation in 50-Hz grids
- Ideal for industrial applications with limited space
- Smooth operation thanks to vibration-decoupled base frame
Efficient Operation with Rapid Cost Recovery
- Electrical efficiency of up to 41.5%
- Low investment and operating costs
- Compact design reduces installation overhead
- High availability thanks to durable engine design
Maintenance-Optimized Thanks to Innovative Oil Technology
- Extremely low lubricating oil consumption (only 0.1 g/kWh)
- Longer oil change intervals for shorter downtimes
- Integrated oil and refill tanks for easy handling
- Less oil contamination for a longer service life

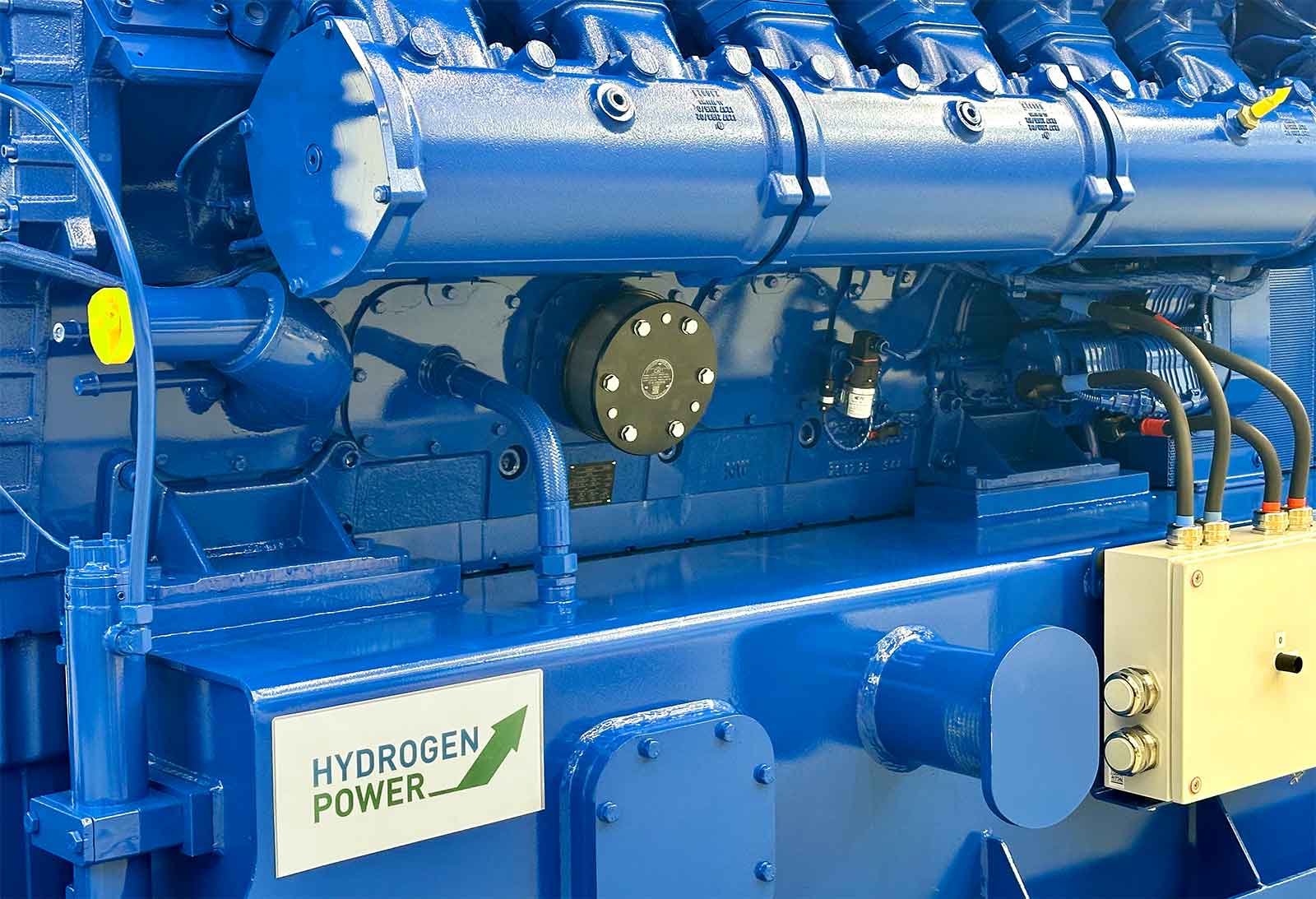

Sustainable Technology for the Use of Hydrogen
What Makes the MWM TCG 3016 V16 S so Special in the Field of Hydrogen Power
- Suitable for operation with natural gas with a hydrogen admixture of up to 25 vol%
- Possibility to retrofit existing plants with the MWM 25H2-Kit for hydrogen
- Suitability for the use of hydrogen certified by the “Hydrogen Power” signet
- High efficiency even with hydrogen admixture
Fields of Application of the MWM TCG 3016 V16 S
FAQ
How efficiently does the MWM TCG 3016 V16 S operate?
The gas engine reaches an electrical efficiency of up to 41.5%. This makes it one of the most efficient in its class and enables highly economical energy generation. Thus, the engine is the ideal choice for operators with high energy requirements.
What is the electrical output of the TCG 3016 V16 S?
The generator set delivers 1,000 kW of electrical output and 1,100 kW of thermal output. This combination is ideal for combined heat and power plants in which both heat and power are generated efficiently.
What are the benefits of the TCG 3016 V16 S in terms of investment costs?
Thanks to its compact design and small footprint, the acquisition costs are relatively low. This significantly shortens the time it takes for the plant to become profitable.
Why is the operation of the TCG 3016 V16 S highly cost-efficient?
The TCG 3016 V16 S boasts the lowest lubricating oil consumption in its class. Longer oil change intervals and integrated oil and refill tanks reduce operating costs and greatly facilitate the maintenance management.
Why is the TCG 3016 V16 S gas engine so easy to maintain?
The combination of extended maintenance intervals, integrated oil management, and low wear makes operation simple and reliable. This not only increases availability, but also reduces maintenance costs in the long term.
Which fields of application is TCG 3016 V16 S especially suitable for?
The TCG 3016 V16 S is especially suitable for CHP plants, industrial applications, and distributed energy supply. Its high power density and small footprint enable its flexible deployment.
How does the TCG 3016 V16 S support high plant availability?
Thanks to the optimized turbocharger and low-vibration design, the engine is very stable. Operation remains reliable even under high loads, significantly reducing plant downtimes.
What are the benefits of the integrated oil management system?
The large integrated oil volume and low oil consumption enable longer change intervals. Besides saving costs, this minimizes maintenance work during operation.
Technical Information on the TCG 3016 V16 S for Download
MWM TCG 3016 V16 S Gas Engine
NOTICE: Click this brochure to access the digital publishing platform issuu.com. This website is governed by the issuu Privacy Policy.
All languages on issuu:
Download PDF:
Insights: Application of the MWM TCG 3016
Visit the international MWM website for information on reference projects in which the TCG 3016 is being used successfully in various applications and industries worldwide.
Your Sales and Service Inquiries
Competence for Your Energy Future
MWM provides you with expert advice and reliable service for your planning, purchase, or maintenance. Our dedicated team will assist you with their expertise and full commitment to ensure that your projects run smoothly. Benefit from custom-tailored solutions for a reliable pathway to your goal.
Your Personal MWM Contact
Make an Appointment with Your Personal MWM Contact
Performance Data: MWM TCG 3016 V16 S Gas Engine
Natural Gas Applications, NOx ≤ 500 mg/Nm3 *
| TCG 3016 V16 S = High density |
||
|---|---|---|
| Engine type | 50 Hz | |
| Electrical output | kW | 1,000 |
| Medium effective pressure | bar | 23.5 |
| Thermal output ± 8% | kW | 1,123 |
| Electrical efficiency | % | 41.5 |
| Thermal efficiency | % | 46.6 |
| Overall efficiency | % | 88.1 |
| Power to heat ratio ** | 0.89 | |
* 5% O2 and dry exhaust gases
** On request
*** The power to heat ratio is calculated by dividing the electrical efficiency by the thermal efficiency. Please remember that this is a theoretical value that may deviate from actually measured values.
The values given in these tables are information purposes only and not binding. The information given in the offer is decisive. Other unit variants with other generators are available.
Protect Your Investment
For a Strong Future for Your Engines
Genuine MWM spare parts suit your plant perfectly, guaranteeing performance, efficiency, and a long useful life. Always get the best quality for your energy supply.
Specifications and Service Intervals: MWM TCG 3016 V16 S Gas Engine
Dimensions and Weights
| TCG 3016 V16 S = High density |
||
|---|---|---|
| Engine type | 50 Hz | |
| Bore / Stroke | mm | 132/160 |
| Displacement | dm3 | 35.0 |
| Speed | min-1 | 1,500 |
| Mean piston speed | m/s | 8.0 |
| Length | mm | 4,200 |
| Width | mm | 1,780 |
| Height | mm | 2,150 |
| Dry weight genset | kg | 8,560 |
* On request
The values given in this table are information purposes only and not binding. The information given in the offer is decisive. Other unit variants with other generators are available.
Service Intervals
| First Service * |
Spark plug change |
|
|---|---|---|
| Natural gas | 2,000 Oh *** | 4,000 Oh |
| Cylinder head inspection |
General overhaul |
|
|---|---|---|
| Natural gas | 32,000 Oh ** | 64,000 Oh |
* “after commissioning (E10)”
The values given in this table are information purposes only and not binding. The information given in the offer is decisive. Other unit variants with other generators are available.
